Create a minimal extension

An extension project for WindowSill is essentially a .NET Class Library. It can be used with Visual Studio, Visual Studio Code and JetBrains Rider.

This guide will walk you through the process of creating and configuring a WindowSill extension project using these editors.

Create a Class Library

• Visual Studio

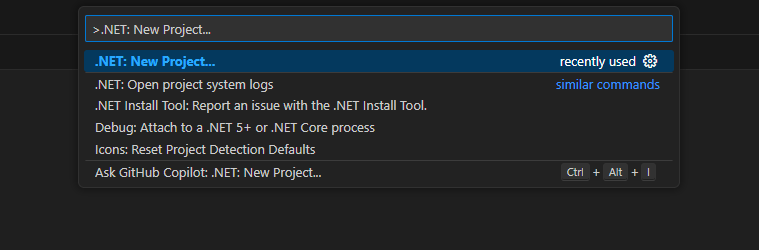

• Visual Studio Code

To create a Class Library project with Visual Studio 2022:

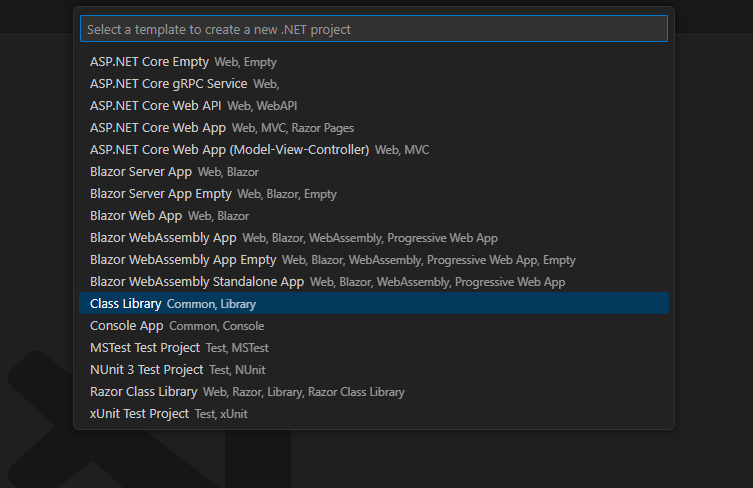

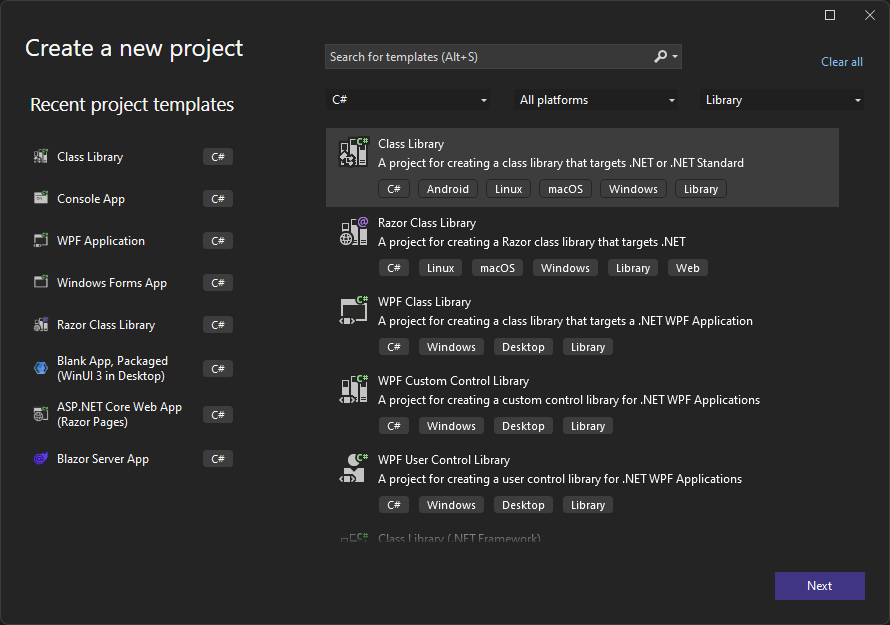

1. Create a new project, from Visual Studio's Start Page or by pressing Ctrl+Shift+N on the main window, and select the Class Library template.

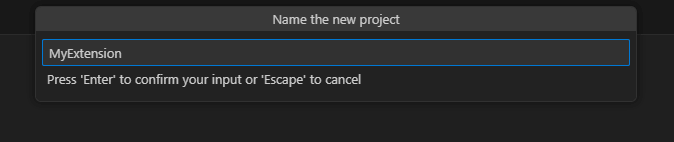

2. Assign a name and location for your project.
3. Choose .NET 9.0 or later, and click Create.

Adding the WindowSill.API NuGet package

The WindowSill.Api is installed via NuGet. To add it to your project:

1. Open a command line prompt.
2. Navigate to the directory containing the *.csproj file you created is (it is the project file create through the previous steps).
3. Execute the following command:

   dotnet add package WindowSill.Api --version VERSION_NUMBER


   Replace VERSION_NUMBER with the version number of your choice. You can find version numbers on the NuGet website.

Understanding a WindowSill extension architecture

A WindowSill extension typically consists of a minimum of three components:

• A .resw file containing localized strings.
• ISill: A WindowSill's sill definition.

While additional components can be added to extend features like WindowSill's Activators, this tutorial will focus on the basics. In the following sections, we will implement a minimal command bar and explain how to create and implement each of the components mentioned above.

Create a .resw file

A RESW file is an XML-based resource file for WASDK, typically containing localized strings displayed to the user. For this sample extension, we will create a resource file with the following entries:

• DisplayName: The sill's title, displayed in the Settings dialog.
• CommandTitle: The name of a command that we will display in WindowSill.

• Visual Studio
• Visual Studio Code

To create a RESW file with Visual Studio 2022:

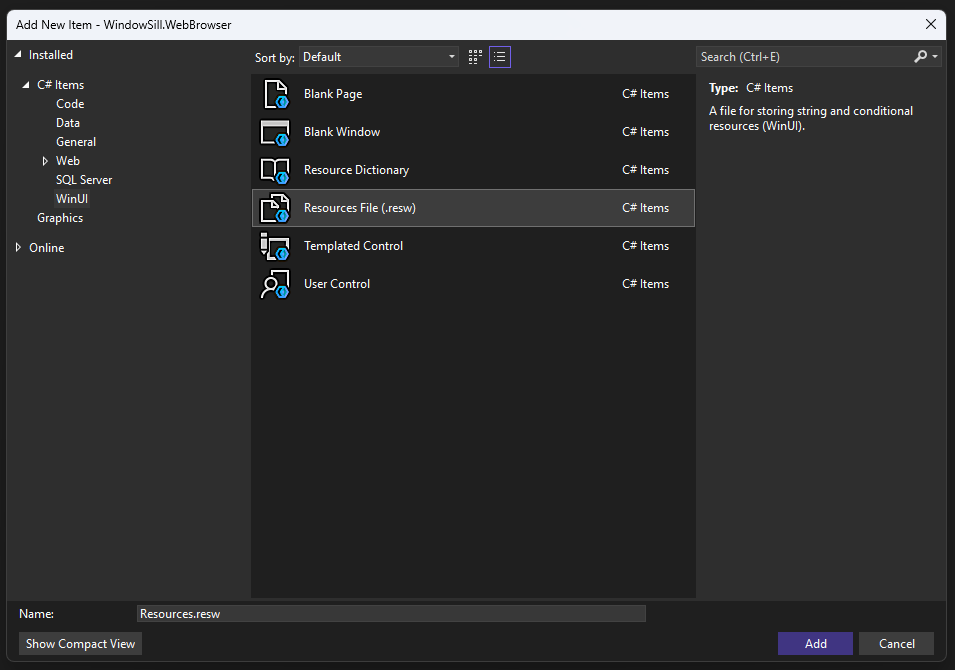

1. In the Solution Explorer, press Ctrl+Shift+A and create a file with the .resw extension in a Strings/en-US folder.

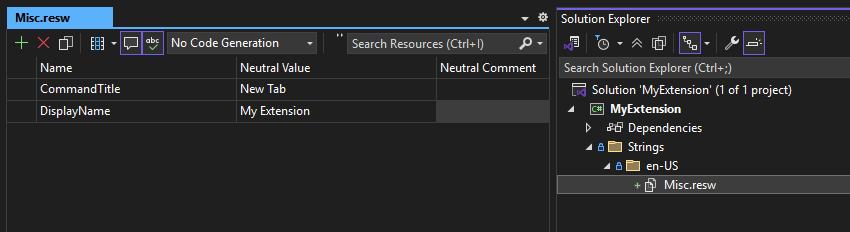

2. Add the following entries, and save:

Create a sill

Add a new C# document named MySill.cs to the project and add the following code:

using CommunityToolkit.Diagnostics;

using System.Collections.ObjectModel;
using System.ComponentModel.Composition;

using Windows.System;

using WindowSill.API;

namespace MyExtension;

[Export(typeof(ISill))]                                     // Marks this class as a Sill to be discovered by MEF.
[Name("My Awesome Sill")]                                   // A unique, internal name of the sill.
[Priority(Priority.Lowest)]                                 // Optional. The priority of this sill relative to others. Lowest means it will be after all other sills.
[Order(Before = "My other sill", After = "Another sill")]   // Optional. Helped break up ties with other sills by precising the ordering with other specific sill names.
public sealed class MySill
    : ISillActivatedByProcess,  // Indicates that this sill will be activated when a specific process or window gets the focus.
    ISillListView               // Indicates that this sill provides a list of commands (buttons, popup, etc.).
{
    private readonly IProcessInteractionService _processInteractionService;

    private WindowInfo? _activeProcessWindow;

    [ImportingConstructor]
    public MySill(IProcessInteractionService processInteractionService)
    {
        _processInteractionService = processInteractionService; // Import a MEF service allowing to interact with processes.
    }

    public string DisplayName => "/MyExtension/Misc/DisplayName".GetLocalizedString(); // Get the `DisplayName` from the resources.

    public IconElement CreateIcon()
        => new FontIcon
        {
            Glyph = "\uED56" // Pizza icon
        };

    public ObservableCollection<SillListViewItem> ViewList
        => [
            // A button command with a '+' icon and a localized tooltip that triggers `OnCommandButtonClickAsync` when clicked.
            new SillListViewButtonItem(
                '\uE710', // '+' icon
                "/MyExtension/Misc/CommandTitle".GetLocalizedString(),
                OnCommandButtonClickAsync),
        ];

    public SillView? PlaceholderView => throw new NotImplementedException();

    public SillSettingsView[]? SettingsViews => throw new NotImplementedException();

    // This sill will be activated when a process detected by `NotepadProcessActivator` gets the focus.
    public string[] ProcessActivatorTypeNames => [NotepadProcessActivator.InternalName];

    public ValueTask OnActivatedAsync(string processActivatorTypeName, WindowInfo currentProcessWindow)
    {
        _activeProcessWindow = currentProcessWindow;
        return ValueTask.CompletedTask;
    }

    public ValueTask OnDeactivatedAsync()
    {
        _activeProcessWindow = null;
        return ValueTask.CompletedTask;
    }

    private async Task OnCommandButtonClickAsync()
    {
        // Sends Ctrl+N to the foreground window, which we expect to be Notepad.
        Guard.IsNotNull(_activeProcessWindow);
        await _processInteractionService.SimulateKeysOnWindow(
            _activeProcessWindow,
            VirtualKey.LeftControl,
            VirtualKey.N);
    }
}

Add a new C# document named NotepadProcessActivator.cs to the project and add the following code:

using System.ComponentModel.Composition;
using System.Diagnostics;

using WindowSill.API;

namespace MyExtension;

[Export(typeof(ISillProcessActivator))]
[ActivationType(InternalName)]
internal sealed class NotepadProcessActivator : ISillProcessActivator
{
    internal const string InternalName = "Notepad Activator";

    public ValueTask<bool> GetShouldBeActivatedAsync(string applicationIdentifier, Process process, Version? version, CancellationToken cancellationToken)
    {
        return ValueTask.FromResult(applicationIdentifier.EndsWith("Notepad.exe"));
    }
}

That's it! In the next section, we will cover how to build and debug this extension, and later one, we will understand what this code does and how to make your own sill.
